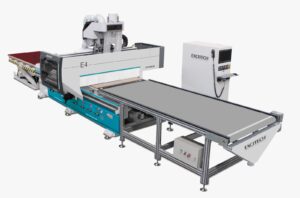

Model: E4-2128D

CNC Router
Excitech
Compara

Caracteristici:

  • Centru de prelucrare pentru utilizare industriala intensiva, cu incarcare si descarcare automata
  • Magazine rotativa cu 8 pozitii si schimbare rapida, 8 conuri ISO 30 si pense ER 32 incluse
  • Functii: rutare, forare, taiere, frezare verticala si orizontala, netezire, sanfrenare etc.
  • Motoare servo si reductoare integral Japonia, electromandrine si schimbator rapid de scule HSD Italia, sisteme electrice de voltaj Schneidei, cabluri Igus Germania
  • Masa vacuum multizonala cu 2 pompe Becker de 250 mc/h,
  • Fixare automata cu cleme de presare si bare pneumatice retractabile.
  • Cadru tubular otel sudat la robot, calit si detensionat in cuptor 24h
  • Electromandrina 9.6kw HDS Italia
  • Controller Open Osai 2 – Italia

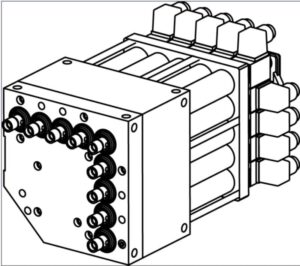

  • Agregat vertical gaurire HSD Italia 5+4 posturi
  • Pregatire pentru integrare in fluxuri de productie Industries 4.0

Aplicatii:

  • Destinat prelucrarii de fronturi, tocarie, balustrade, usi si ferestre, gravuri, etc
  • Debitari pentru lemn masiv, PAL, MDF, plastic, rasini, materiale compozite, panouri izolante etc.
  • Prelucrari in lemn, acril, PVC, materiale dure, sticla organica si metale neferoase (aluminiu, cupru etc.)

Optional:

  • Sistem de printare cod de bare si aplicare manuala
  • Sistem automat de printare si aplicare coduri de bara
  • Magazie de scule 12 sau 16 posturi (8 posturi standard)
  • Electromanrina 12kw prinderi HSK F63 (9,6 standard)
  • Personalizare dimensiuni masa
  • Sistem exhaustare cu 4 saci colectori

Specificatii tehnice:

E4 series E4-2128D
Zona deplasare 2100*3100*330mm
Zona lucru 2080*2850* 200mm
Masa lucru 2100*3100mm
Transmisie  X/Y cremaliera dinti elicoidali si pinion, Z surub cu bile – Germania
Structura masa  T-slot vacuum cu 2 pompe Becker 140mc/h
Putere electromandrina  9.6 / 12.0KW
Viteza electromandrina  24000 r/min
Viteza deplasare  80m/min
Viteza deplasare in lucru  25m/min
Magazin scule  Rotativa – HSD Italia
Capacitate magazie  8/12/16 – conuri ISO 30 incluse
Motoare Servo Yaskawa Mechtrolink III 1500W pt X/Y, 1000W pt Z
Reductoare Φ80 Shimpo Japonia
Voltaj  AC380/3PH/50HZ; 42KW
Controller OSAI Open 2 – Prima Electro Italia

Contine cu titlu gratuit transportul (DDP), montajul si punerea in functiune, instructajul, garantie de functionare 12 luni, postgarantie 5 ani si aistenta tehnica online 10 ani.
